    Galvanised Finish Automatic Storage And Retrieval System For Saving Space

    Ask Lasest Price
    Brand Name : NOVA
    Model Number : NH
    Certification : ISO9001; ISO14001; CE
    Price : Negotiate
    Supply Ability : 8000 TONS PER MONTH
    Delivery Time : Typically standard products are delivered within 20 days.
    • Product Details
    • Company Profile

    Galvanised Finish Automatic Storage And Retrieval System For Saving Space

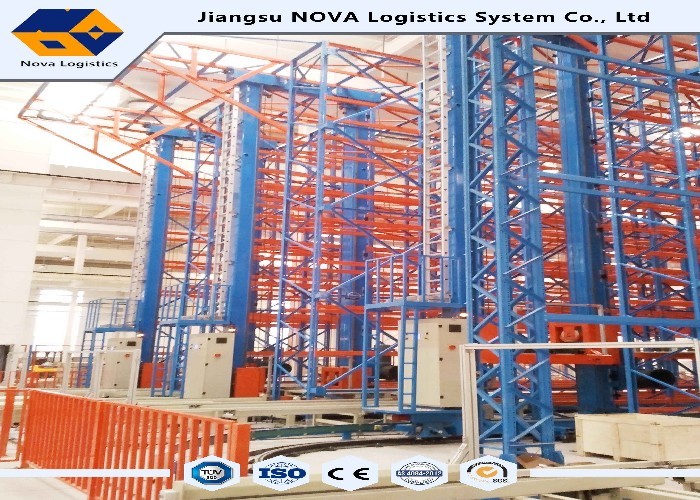

    Automatic Storage and Retrieval System

    Automated ASRS system, heavy duty storage rack

    1).AS/RS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure.
    2).Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer.
    3). AS/RS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.


    Advantage
    Using the warehouse space fully
    Saving space reducing the H.R
    Removing mistake
    Improving working and management etc.


    1. Raw Steel Code

    Q235B

    2. Loading Capacity

    1-24 tons

    3. Racking Height

    Up to 14,000mm

    4. Racking Depth

    700-1200mm

    5. Beam Length

    Up to 25000mm

    6. Racking Finish

    Powder Coated Finish or Galvanised Finish for Frames.

    7. Upright(Standard section size)

    80*60*1.8-2.0, 90*60*1.8-2.0, 90*67*1.8-2.0, 90*78*1.8-2.5, 120*85*2.0-3.0, 120*95*2.0-3.0mm

    8. Box beam(Standard section size)

    80*50*1.5, 100*50*1.5-2.0, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0mm

    9. Delivery time :

    7 -15days for 2*40' containers

    13. Standard exporting package:

    1. Packing in carton clips for beams;
    2. Packing in plastic films for uprights;
    3. packing in cartons for other accessories.

    Galvanised Finish Automatic Storage And Retrieval System For Saving Space

    Galvanised Finish Automatic Storage And Retrieval System For Saving Space


    If you are interested in our ASRS system, please offer following info for a clear quotation:

    1.the warehouse drawing(CAD drawing is better),Or you can tell me the quantity needed.And include how many main shelf and slave shelf?
    2.the size of the rack(L*W*H)
    3.the loading capacity of each layer
    4.the layers of per rack

    If you don't have the drawing, we could provide you the CAD design for your warehouse to your requirements, thanks a lot.
