    Factory Warehouse Storage Drive In Pallet Racking With Corrosion Protection

    Ask Lasest Price
    Brand Name : NOVA
    Model Number : NH
    Certification : ISO9001; ISO14001; CE
    Price : Negotiable
    Supply Ability : 8000TONS/Month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    Factory Warehouse Storage Drive In Pallet Racking With Corrosion Protection

    CE &ISO China rack factory warehouse storage solution drive in pallet racking

    Product Description

    Drive in Pallet Racking is widely used in high-volume, few varieties of cargo storage,such as: food, tobacco, household appliances, chemicals, clothing, cold storage warehouse.


    Drive in Rackingis ideal for facilities that store large amounts of the same items. You can store up to 75% more pallets than with conventional pallet rack and your over square footage needs can be reduced by up to 35%. It requires fewer aisles and is better cubic storage.

    § Advantages

    1. LIFO/FIFO (last in first out/first in first out) configurations;

    2. High volume, low SKU;

    3. Eliminates the need for multiple aisles;

    4. Provides control over entry and exit;


    Loading capacity

    Width

    Depth

    Height

    weight capacity<5000kg

    800 - 1400mm

    3 - 12 pallets

    1,000 - 10,000mm

    Special sizes are also available to specific storage needs.


    § Necessary Data - for quotation

    1) Pallet Size: Length*Depth* Height ??

    2) Loading capacity for each pallet ??

    3) Number of Levels ??


    Packing & Delivery

    Packing Details : Packed by wooden bars, crates, metal stripes, films for bulk goods, and cartons for accessories. Package is also customized. A 40'GP is available for around 20-25 tons materials and accounts for up to 55 CMB
    Delivery Details : Within 20 days after payment

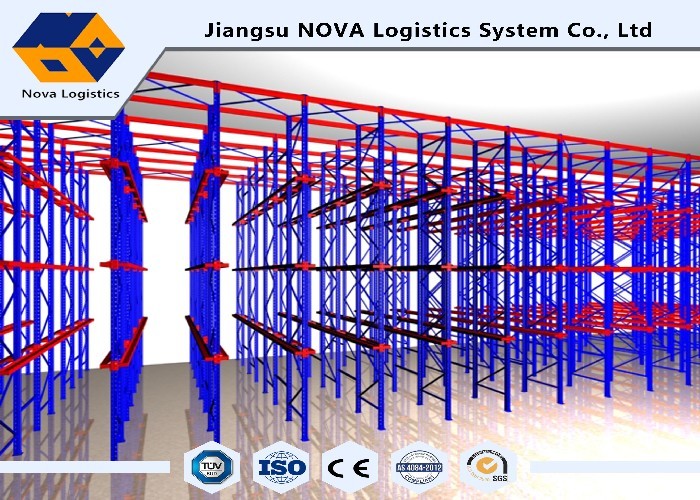

    Factory Warehouse Storage Drive In Pallet Racking With Corrosion Protection


    Steel Drive In Warehouse Pallet Rack

    1. Features

    1) Beam levers are adjustable in 75mm pitch interval.

    2) Different sizes, various specifications and colors are available according to your different needs.

    3) Maximizes space utility ratio while retaining optimum product accessibility.

    4) Strength and rigidity prevents compression damage to goods.

    5) Bottom level of pallets can be stored on the floor, lowering structure costs.

    2. Material

    High grade Q235B Cold Rolled Steel

    3. Surface Treatment

    High-quality Powder Coating Finishing.

    4. Load Capacity & Dimension:

    1) Loading capacity: 500-4000 kgs/pair beam.

    2) Height: 1500-10000mm

    3) Depth: single row 800-1200mm ( decided by pallet size)

    4) Length: 1500/2000/2500/2800/3000/3300/3500/3600 (1, 2 or 3 pallets per level, according to pallet size)

    Special sizes also available to specific storage needs.

    5. Main Parts Specs(mm):

    1) Upright: 90*70*2.0

    2) Beams: 100*50*1.5/120*50*1.5/140*50*1.5/160*50*1.5/140*50*2.0/160*50*2.0

    3) Horizontal & diagonal bracings: 40*24*1.5

    4) Upright Footplates: 120*120*3.0

    5) Safety locking pins


    6) Bolts & nuts


    7) Anchors and all necessary components.

    6. Certificates.

    CE certified, ISO9001,

    7. Quick Delivery

    Within 15 workdays (negotiable), according to quantity
