    Cold Rolling Steel Cantilever Storage Racks System For Particular Business / Product Line

    Ask Lasest Price
    Brand Name : NOVA
    Model Number : cantilever
    Certification : ISO9001; ISO14001; CE
    Price : Negotiate
    Supply Ability : 8000 TONS PER MONTH
    Delivery Time : 15 to 20 days
    • Product Details
    • Company Profile

    Cold Rolling Steel Cantilever Storage Racks System For Particular Business / Product Line

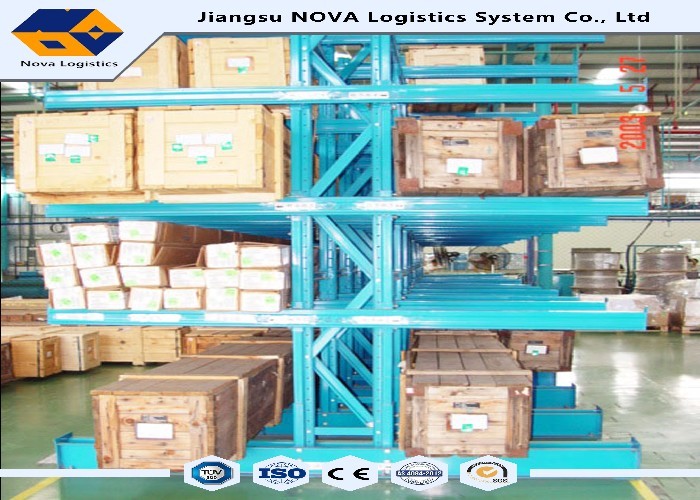

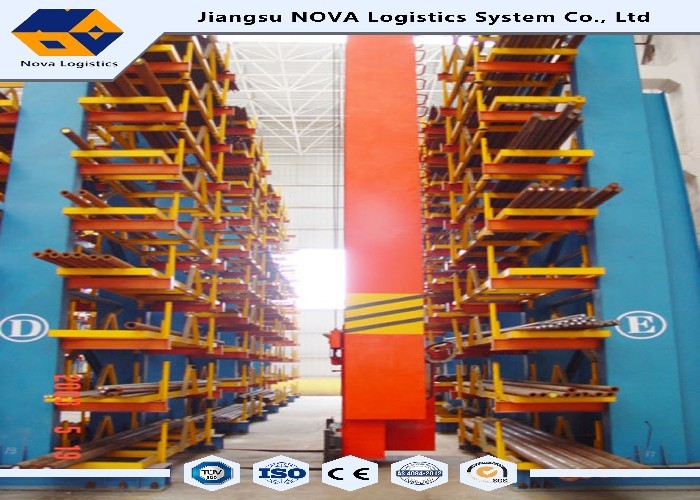

    Cantilever rack

    Cantilever rack of pipes, wire and other profile class strip goods store has a very unique advantage. Can be divided according to the bearing capacity of light, medium and heavy three. According to the structure can be divided into sigle-sided double cantilever cantilevered shelves and shelves.


    Features:

    A. Single Rib Column Design.

    B. Tapered Keyhole Solts.

    C. Return bends on all open-back design frame members.

    D. One-piece tube seamed step beams.

    E. High strength tapered studs on beam connector plates.

    F. Integral beam connector safety locker.

    G. Quick&Easy Assembly.

    H. Full range of capacities and sizes from hand-loaded bulk rack to your heaviest applications.


    Loading capacity

    Length

    Depth

    Height

    1000-3000kg

    1,000 - 3,000mm

    500 - 1,500mm

    2,000 - 6,000mm

    Special sizes are also available to specific storage needs.


    1. Features1) Beam levers are adjustable in 75mm pitch interval.
    2) Different sizes, various specifications and colors are available according to your different needs.
    3) Maximizes space utility ratio while retaining optimum product accessibility.
    4) Strength and rigidity prevents compression damage to goods.
    5) Bottom level of pallets can be stored on the floor, lowering structure costs.
    2. Material:High grade Q235B Cold Rolled Steel
    3. Surface Treatment:High-quality Powder Coating Finishing.
    4. Load Capacity & Dimension:1) Light duty: 50-200kg
    2) Medium duty: 200-800kg
    3) Heavy duty:500-2000kg
    5. Main Parts Specs(mm):1) Upright: 80*200*T3.0mm
    2) Arms: 130mm(Bottom)*T3.0;80mm(Top)*T3.0mm
    3) Back bracings:dia 8mm;
    4)Row bracing:40*24*T2.0mm
    5) Anchors and all necessary components.
    6. Certificates.CE certified, ISO9001,
    7. PortNanjing Port is strongly recommended.
