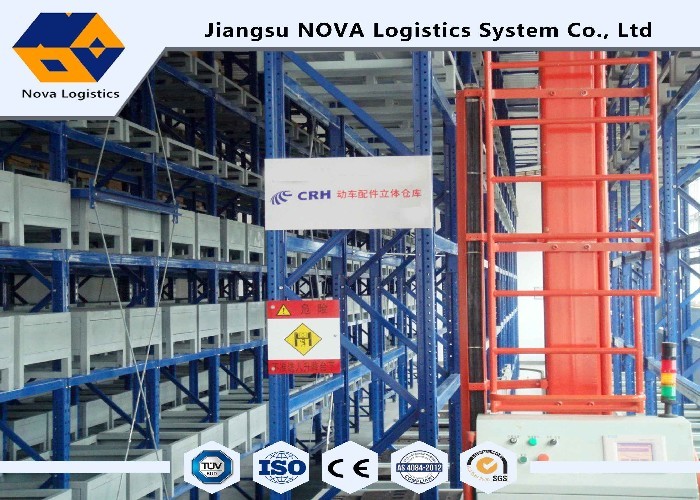

Automated Storage and Retrieval System /ASRS
1. Racking
Racking system used for AS/RS usually consists of pallet racking
and cantilever racking, treated with powder coated, dismantled
structure.
Advantages of Racking System
1. Optimized sectional design, quality steel used.
2. Pitch is adjustable by 75mm for uprights, and beams are tightly
locked by safety pins.
3. Strengthened by quality bolt&nut, safe and reliable.
4. Perfect structure, high intensity, good stability.
5. Good looking with epoxy powder coated surface.
2. Stacking System
Operational control mode: Computer monitoring & controlling system
and PLC detecting system to get automatic control system achieved.
Operator Schema: Online automatic mode, single-computer automatic
mode, semi-automatic mode, manual mode, maintenance mode.
Automatic addressing modes: Laser-measuring addressing, rolling
addressing, barcode addressing.
Communication modes: infrared communication, wireless
communication.
3. Conveyor System
Conveying system is include by various of conveyor system, lifting
& transferring device, lift, various shuttle, detecting door,
computer monitoring system, automated control system.
Tge operation of commodity arrival, unloading, sorting, storage,
shipment, classification, issuing, is bound to go through the
transport sorting equipment in different levels of complexity to
realized unloading and sorting according to the product type,
owner, storage or sending location in the shortest possible time,
also delivered to the designated positions(such as the designated
shelves, processing areas, shipping platform, ect. )
Meanwhile, when the supplier or the owner notify the logistics
center to make the shipment according to the distribution
instructions, automated sorting system must accurately find out the
location of the goods which need to be shipped from the giant
high-level storage system in the shortest time and delivery as per
requred quantity.
It also picks different quantity of goods from different storage
positions, delivering to different tally area or distribution
platform based on different on different delivery locations, making
an easy transportation or loading distribution, fully realizing a
rapid delivery sorting funcion.
4. Controlling system
Structural feature:
Communicating with WMS and ECS through OPC agreement, PROFIBUS bus
network, set up by SIEMENS S7-300 controller can operate all
conveyors offline, doing conveying of goods automatically.
Please refer to the attached drawing for details of conveying
system
5. WMS System
Hardwares of WMS System: star network structure, network sever, RF
server, computers for management and monitor, RF base station and
RF terminal for in/out warehouse of goods.
Softwares of WMS System:
Operating system: WINDOW 2000X SEVER
Data-base: MS SQL SEVER 2000X
Warehouse management software: WMS
Equipment controlling software: ECS
Bar code management software: RFS
6. Other related equipment
Other related equipment include switching cart, rail cart, O/R
table, automatic guided vehicle, auto-picking system, electronic
label, pallet lift and so on.
